X-23 Bolt-On Triple Tree Kit, 2024-2025 Road Glide, Street Glide

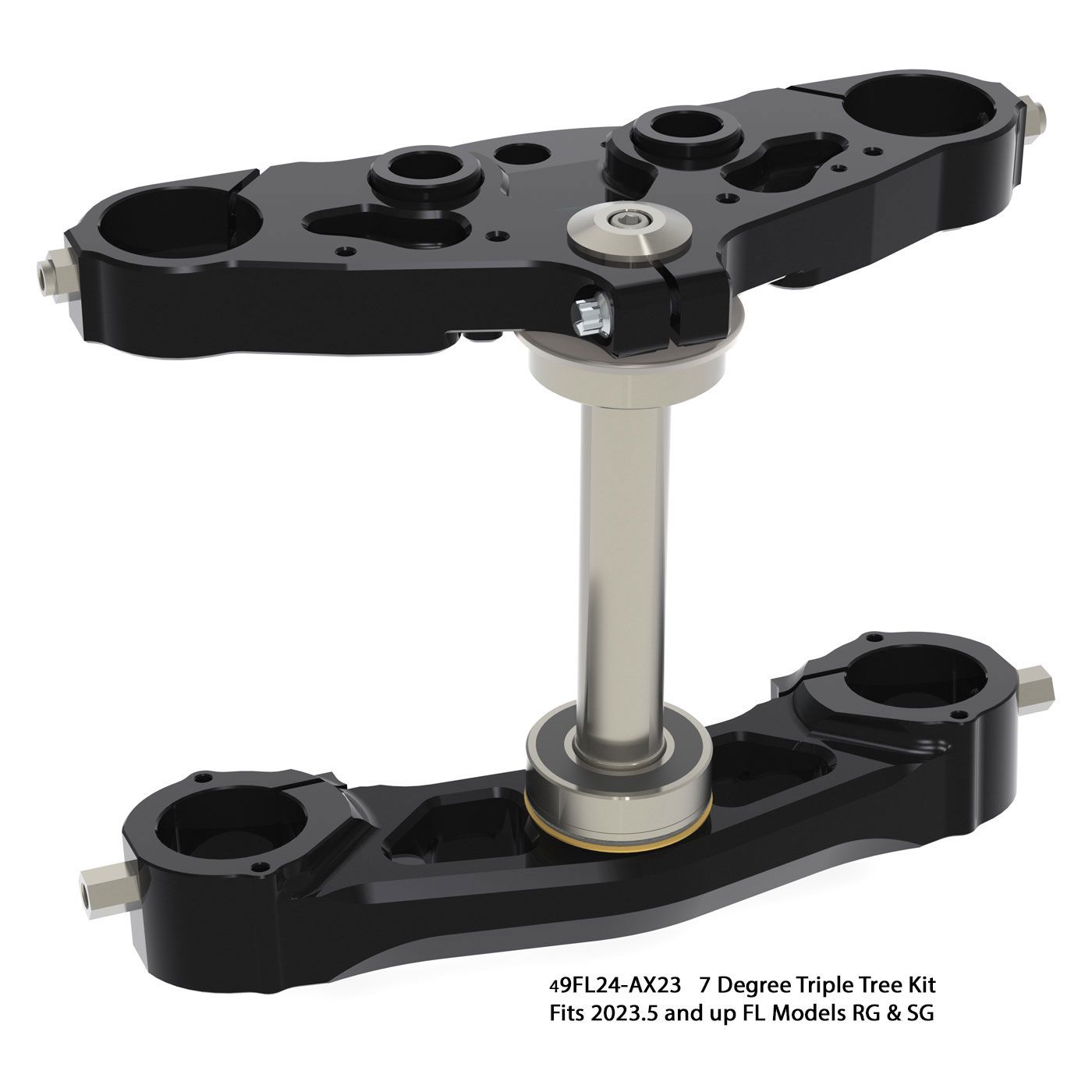

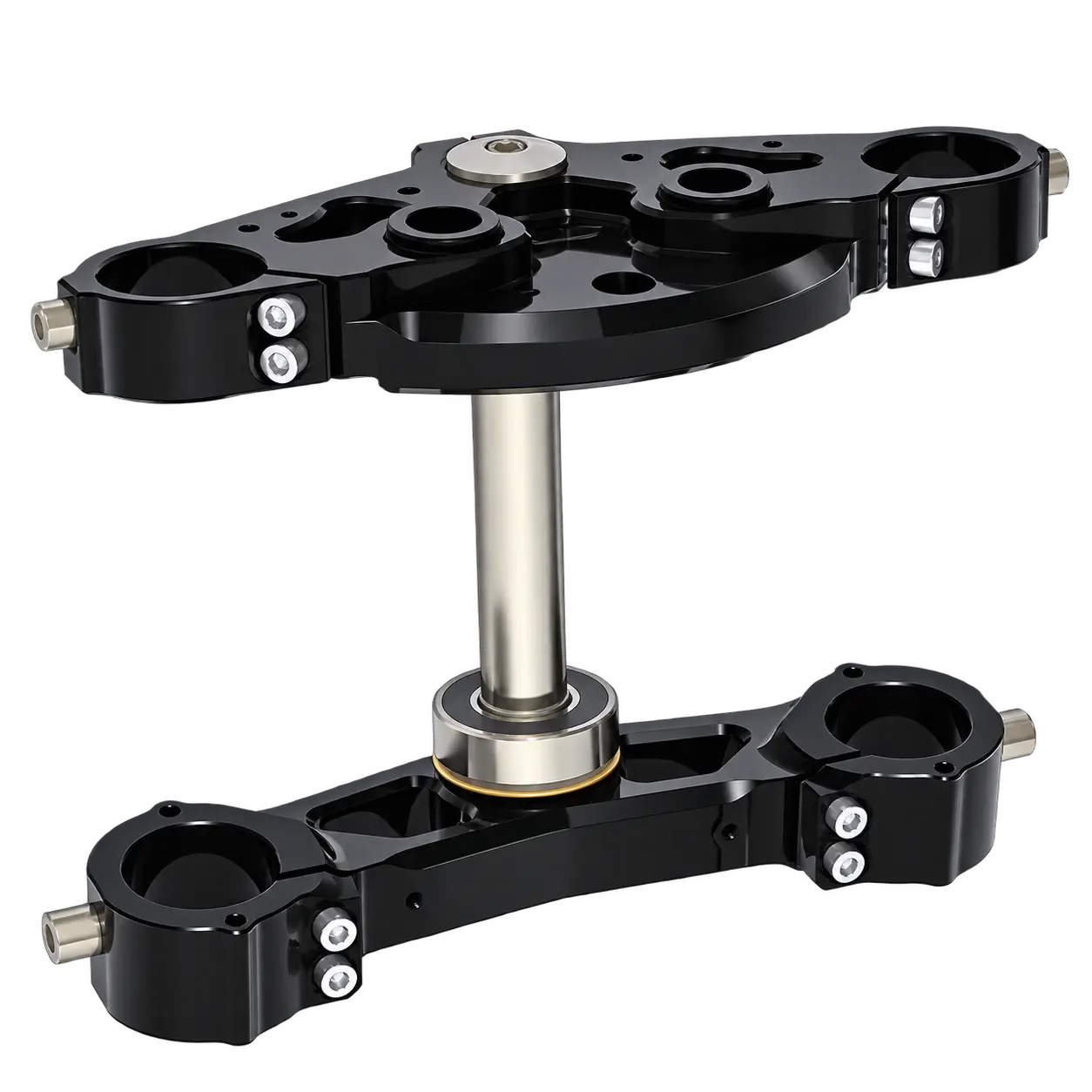

NEW 49 mm X-23 Bolt-On Triple Tree Kit

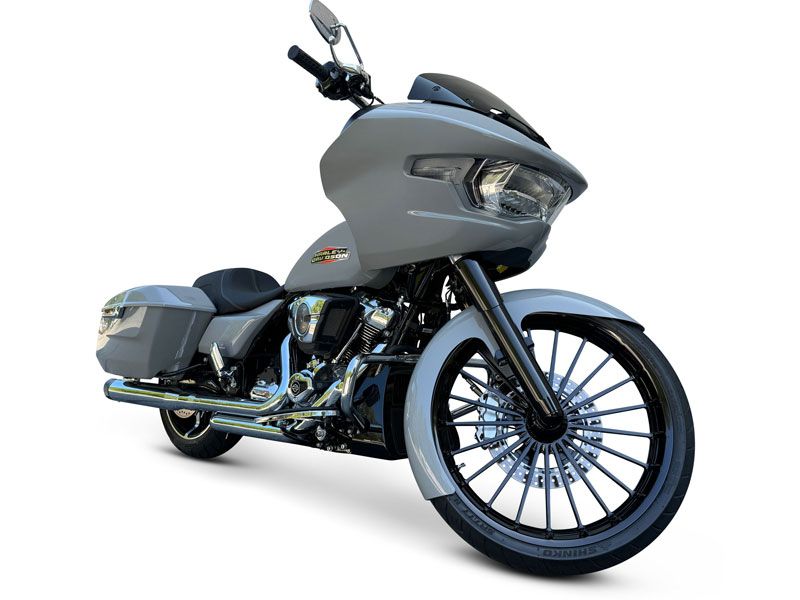

Fitting the NEW 2024 FLHX Street Glide and the FLTRX Road Glide, HHI now offers a 49MM BOLT-ON raked triple tree kit for a 23″x130mm or 21″x 180mm wheel/tire installation.

The HHI proven design geometry of this triple tree results in a trail measurement similar to the stock factory HD specifications. This new kit provides a quick, easy, cost-effective method of safely installing a 23×3.75″x130mm or 21×5.5″ x 180mm wheel and tire on any of the NEW fairing style 2024 Road Glide / Street Glide models.

The New HHI kit offers many exciting features and benefits:

• Fits the 2024+ Standard Street Glide and Road Glide Models with 49mm conventional fork and NEW fairing design
• 7 degree triple tree rake results in stock trail geometry and clearance for a full wrap fender
• Provides responsive and stable handling
• Performs as good or better than stock
• Direct bolt-on, NO modifications necessary
• Positions the front wheel forward approximately 2″
• Headlight angle can be adjusted without the use of a raked bezel kit
• Does not require fork extensions and uses stock length fork covers
• Kit includes fork travel limiters to prevent fender interference
• Provides a fully functional Stock Fork Lock.
• Available in Machine or Black finish

HHI recommends the rear wheel size to remain stock 18 x 5.5 wheel with a properly load rated 180mm 80H+ tire.
